Work Breakdown Structure

Previous pageReturn to chapter overviewNext page

ico_tip

To search for the topics containing several words (regardless of proximity), enter them after one another.

To search for the topics containing a phrase, enter it between double quotes.


A WBS is a tool used to define and group a project's discrete work elements in a way that helps organize and define the total work-scope of the project.

The WBS uses a tree structure that illustrates the subdivision of effort required to achieve an objective; for example, a program, project or contract. The WBS is developed by starting with the end-objective and successively subdividing this objective into manageable components, in terms of size, duration and responsibility (e.g., systems, subsystems, components, tasks, subtasks and work packages). It also includes all the necessary steps to achieve the objective.

Conversely, the WBS permits summing up subordinate costs for works, materials, etc., into their successively higher-level “parent” tasks (branches).

When used with QDV7, every task (leaf) of the WBS contains the primary products of the project, providing for each one the cost, in terms of materials, workforce and subcontracting, as well as possibly for technical details such as weight, surface area, width, etc. A well-designed WBS makes it easy to assign each project activity to one, and only one, terminal element of the WBS.

Up to 8 levels are allowed. Task maximum count: 4095.

All the costs and prices are expressed in the estimate currency selected in the Currencies Sheet.



Terminology: IT versus Costing

Level

IT: network of nodes

Costing: set of tasks to carry out

Note

Tree

WBS



0

Root

Objective



1 thru 7

Branch

Package, Chapter, Sub chapter

Ends with a (sub) total row

Set, Task, Sub task



2 thru 7

Leaf

Terminal element (unit task or sub-task)

Called Section of Minutes when  broken down into Minutes

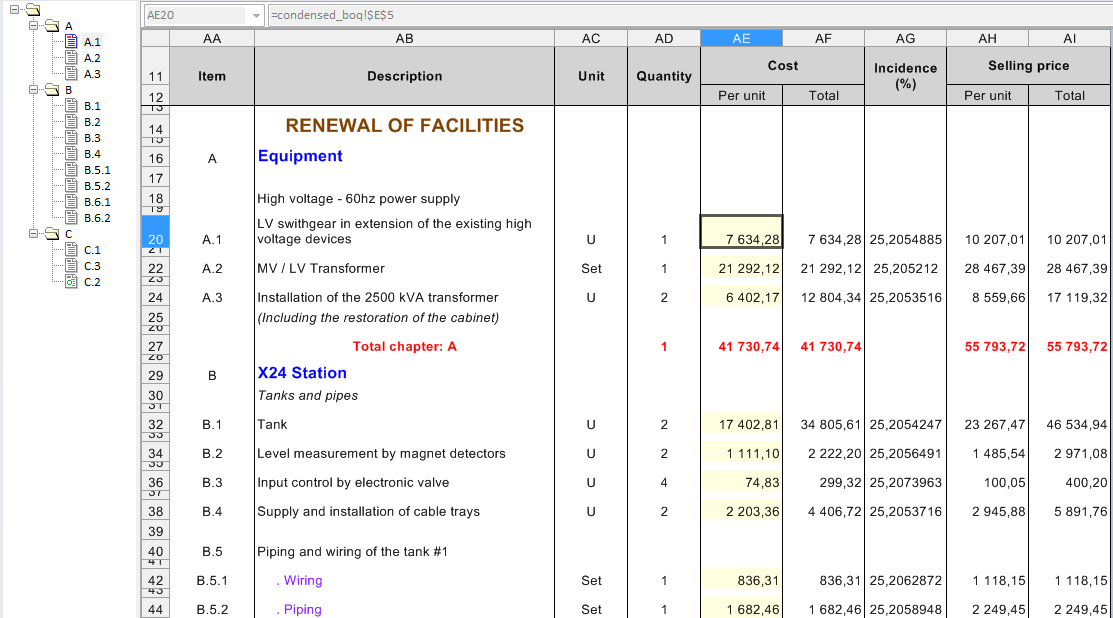

This WBS features the chapters A and B, and in A the tasks A.1 thru A.3:
