Set Databases

Navigation:  »No topics above this level«

Set Databases

Previous pageReturn to chapter overviewNext page

A set is a collection of articles from various databases or of nested sets. It is kind of a custom database of articles, and it belongs to a larger database.

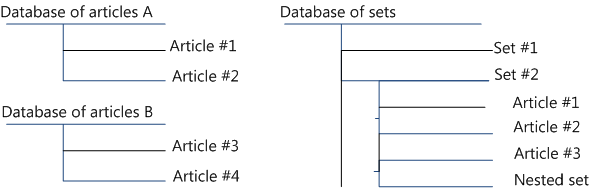

set_base

It allows to insert all these articles at once into the Minutes. The position in the general process shows in Data Model.

The articles of a set - unlike a virtual database - are NOT dynamically linked to the database they originate in. The source can be retrieved as far the article reference is not altered (see #5 in the figure below), but the articles can be modified apart in the set or in the database.

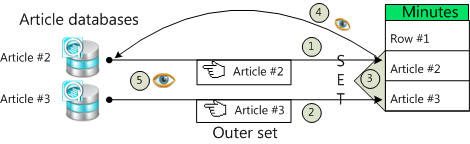

A set is created in the Minutes thru the following steps for a set with two articles (#2 and #3):



Set12



1.How to Insert an Article into a Section of Minutes

2.How to Insert an Article into a Section of Minutes

3.How to Record a Set

4.How to Retrieve the Source of an Article

5.How to Retrieve the Source of an Article



Unlike a set in the Minutes (refer to How to Create Sets of Minutes), a set of articles does not depend on the estimate which it has been created with, and it is created outside it; if it consumes an estimate's global variable, it takes the present value and does not maintain a link with the global variable.



Database of Sets

Any set must be enrolled in a database of sets because a set can be viewed only in its database's viewer.

A database of sets is a file whose extension is grp.

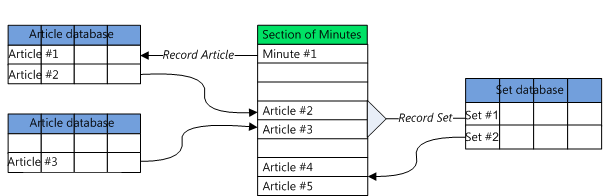

A set can be in turn inserted into the minutes. The full diagram is as follows:

full diagram



NOTES

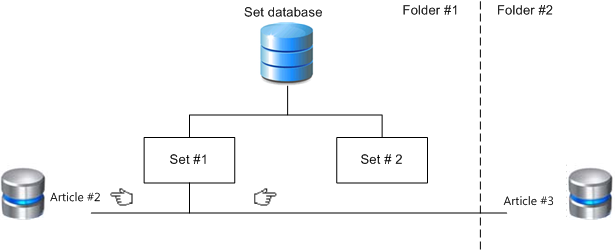

- A set can include other sets (refer to Nested Sets)

- A database of sets can include sets with articles whose source is not in its folder



set hierarchy3
