Column for Macro

Navigation:  OVERHEAD > Pricing Sheets >

Column for Macro

Previous pageReturn to chapter overviewNext page

Use Case

In the Set Sheets or List for Overhead tabs, you want push particular data, for example calculated with your own Quantity columns (refer to Quantities) or data with more than 3 dimensions (refer to List for Overhead).



Procedure

You have created a macro that involves one of the above mentioned tabs.

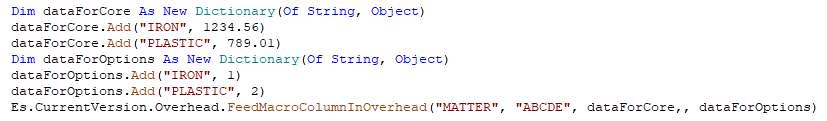

You can use an API function such as FeedMacroColumnInOverhead(), for example, for the MATTER tab in samples of estimates:

clip0861

To insert and define a column for macro:

1.Switch to Edit Mode

2.Select a cell in the column which the extra column must be inserted before

3.In the dialogue, enter the macro's Id (at least 5 chars among upper class, digits and _)

4.Click Ok; this populates the column as defined by the macro.
